Apraksts
Manufacturer's code:
10030752The Steinberg Systems Balanser allows you to keep heavy work equipment in the workshop, mass production or assembly hall. The device keeps pneumatic tools of weight
0,5-1,5 kg The balancer housing is made of solid and durable steel, which withstands even intense use. The polyester hose safely supports the pneumatic tool during assembly and other work. The device is powered by compressed air with a working pressure of 10 bar (max. pressure of 60 bar). The compressed air loader has an R3/8' and R1/4' hose. The Balanser must always be operated vertically to balance the weight. The hose is 1.3 m long and provides freedom of movement.
Product features: - - High load capacity allows to maintain tools of 0.5-1.5 kg weight,
- - The length of the hose 1.3 m ensures maximum freedom of movement,
- - Retracts from work heavy pneumatic tools to prevent fatigue,
- - housing made of steel and resistant to tearing hose of polyester,
- - Keeps the pneumatic tools in position for work.
Technical parameters: - - Model - SBS-AHB-15
- - Catalog number - 10030752
- - The state of the article - New
- - Working length [m] - 1,3
- - Snake thickness [mm] - 8 x 12
- - Material - Plastic, polyester, steel
- - Permissible load [kg] - 1,5
- - Maximum load [kg] - 1,5
- - Connection - Air intake: 3/8", air outlet: 1/4"
- - Weight load [kg] - 0,5-1,5
- - Maximum pressure [bar] - 6 MPa
- - Working pressure [MPa] - 1
- - Dimensions (DxSxW) [cm] - 30 x 18 x 16
- - Weight [kg] - 1,95
- - Dimensions of dispatch (DxSxW) [cm] - 32.5 x 24 x 19.5
- - Weight of dispatch [kg] - 2,45

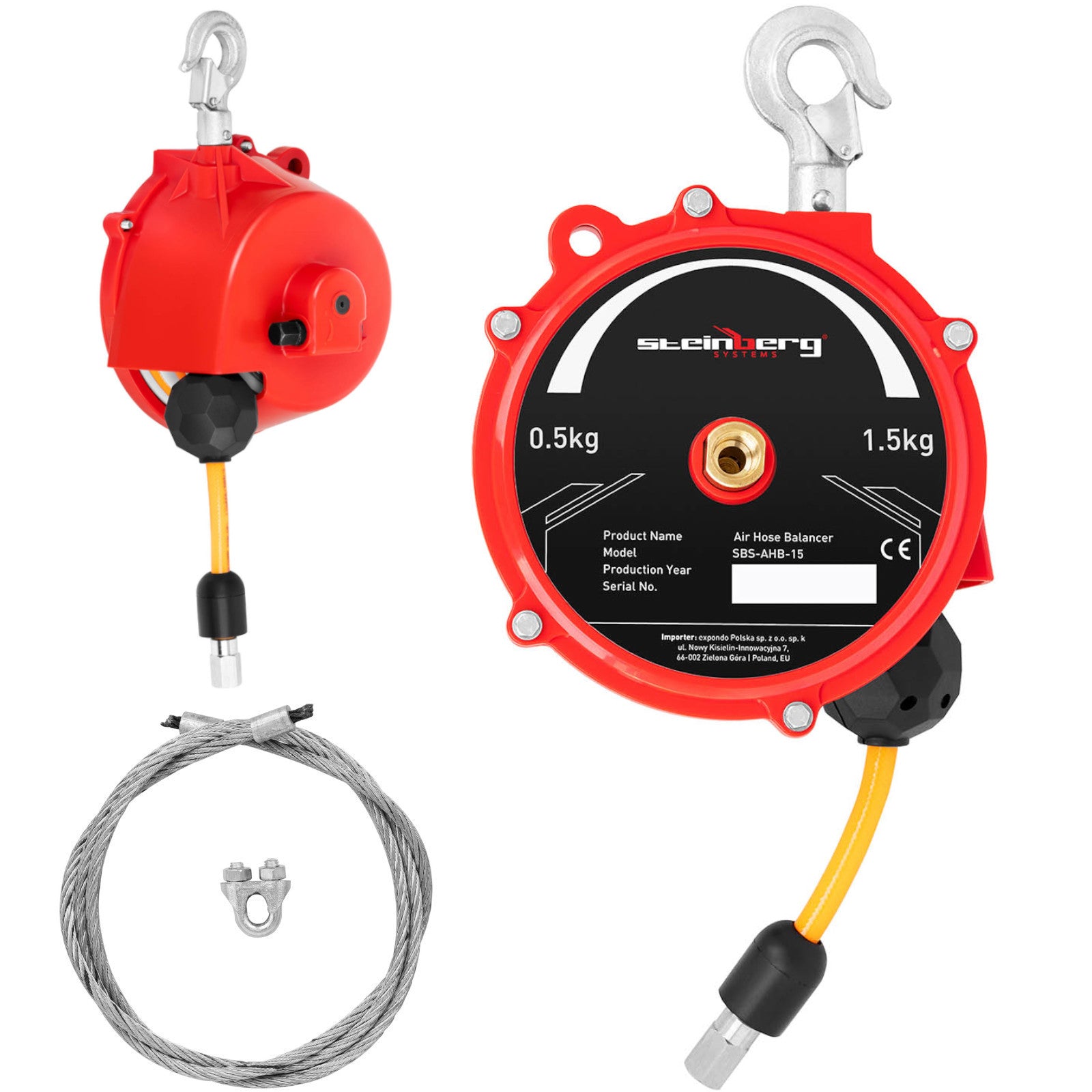

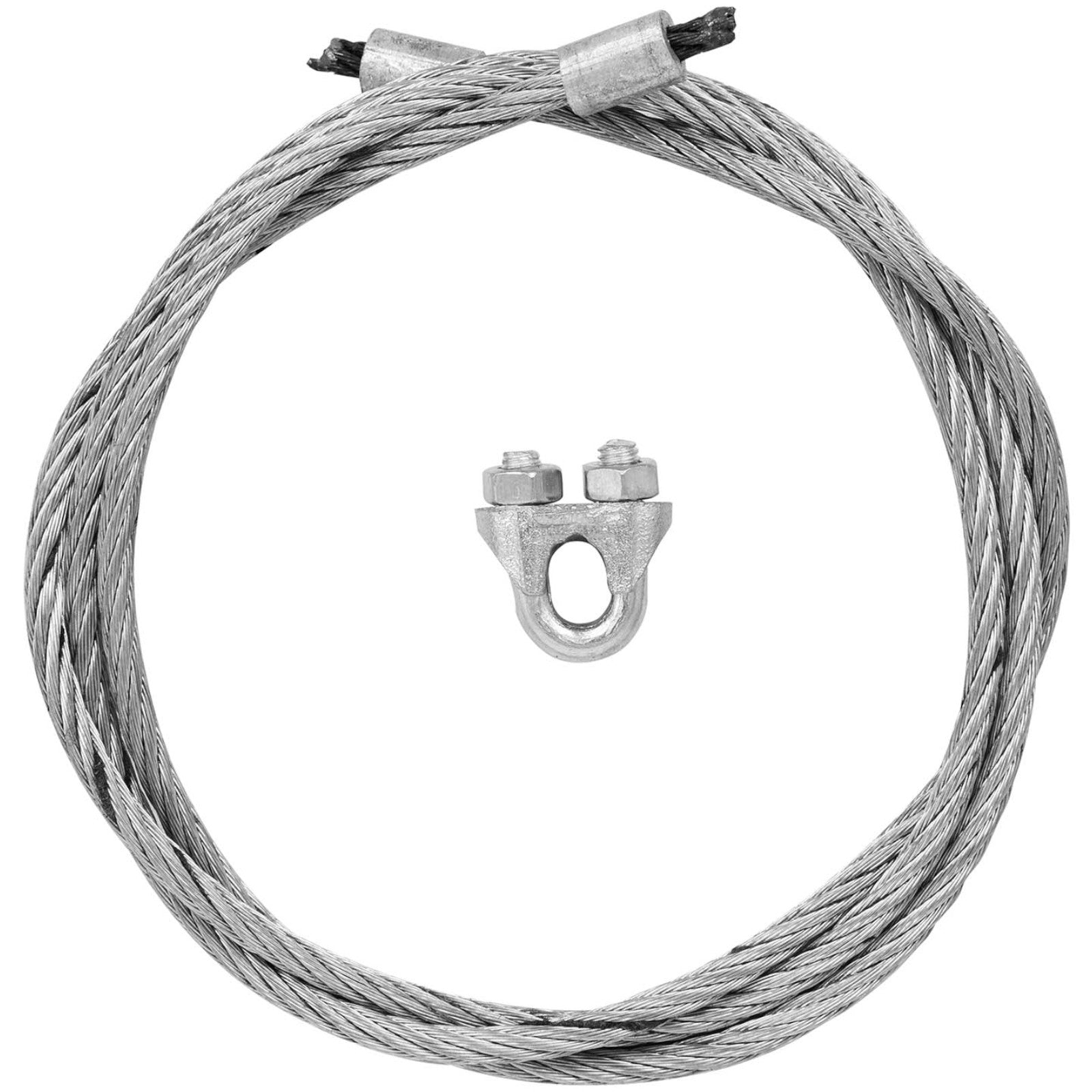

Included:
