Apraksts
Manufacturer's code:

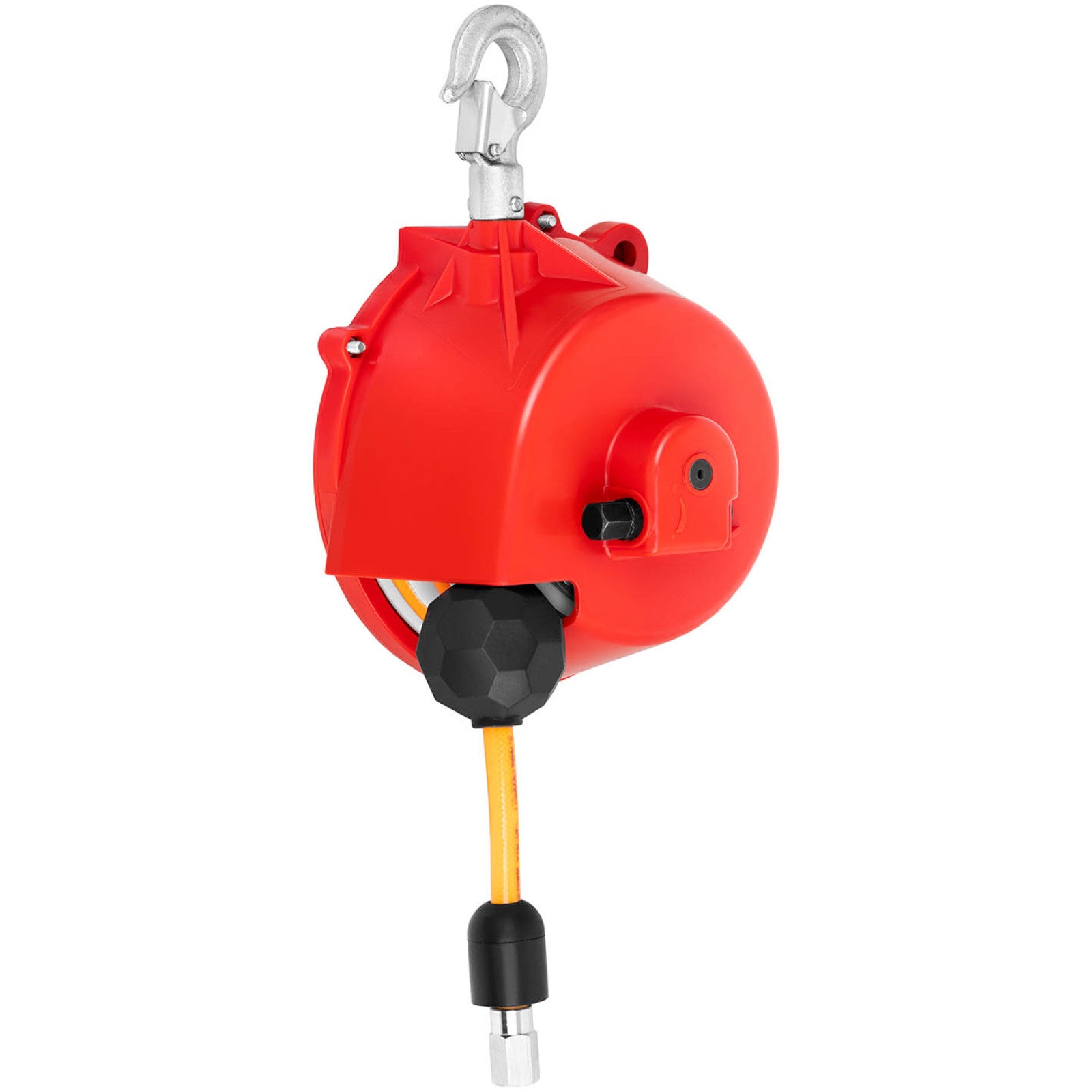

10030748The Steinberg Systems Balanser allows you to keep heavy work equipment in the workshop, mass production or assembly hall. The device keeps pneumatic tools of weight
5 - 6.5 kg The work position allows the tools to be run easier and more accurately and effortlessly. The balancer housing is made of solid and durable
steelwhich can withstand even intense use.

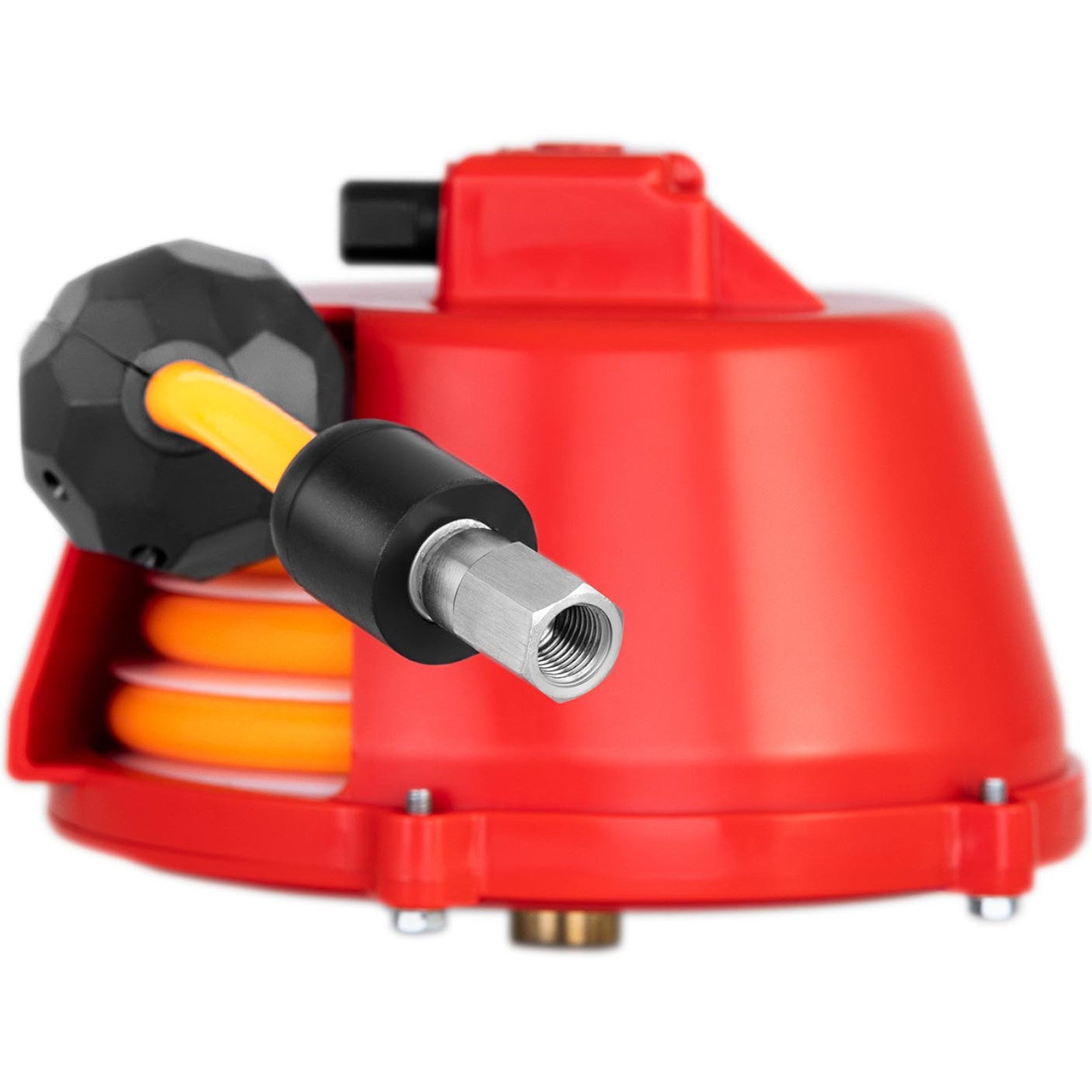

Polyester hose it supports the pneumatic tool safely during assembly and other works. The device is powered by compressed air with working pressure
10 bar (max. pressure 60 bar). The loader for compressed air has a connector
R3/8'', and to the snake
R1/4''Balanser must always be operated vertically to be able to optimally balance the weight. The hose has length
1.3 m and provides freedom of movement.

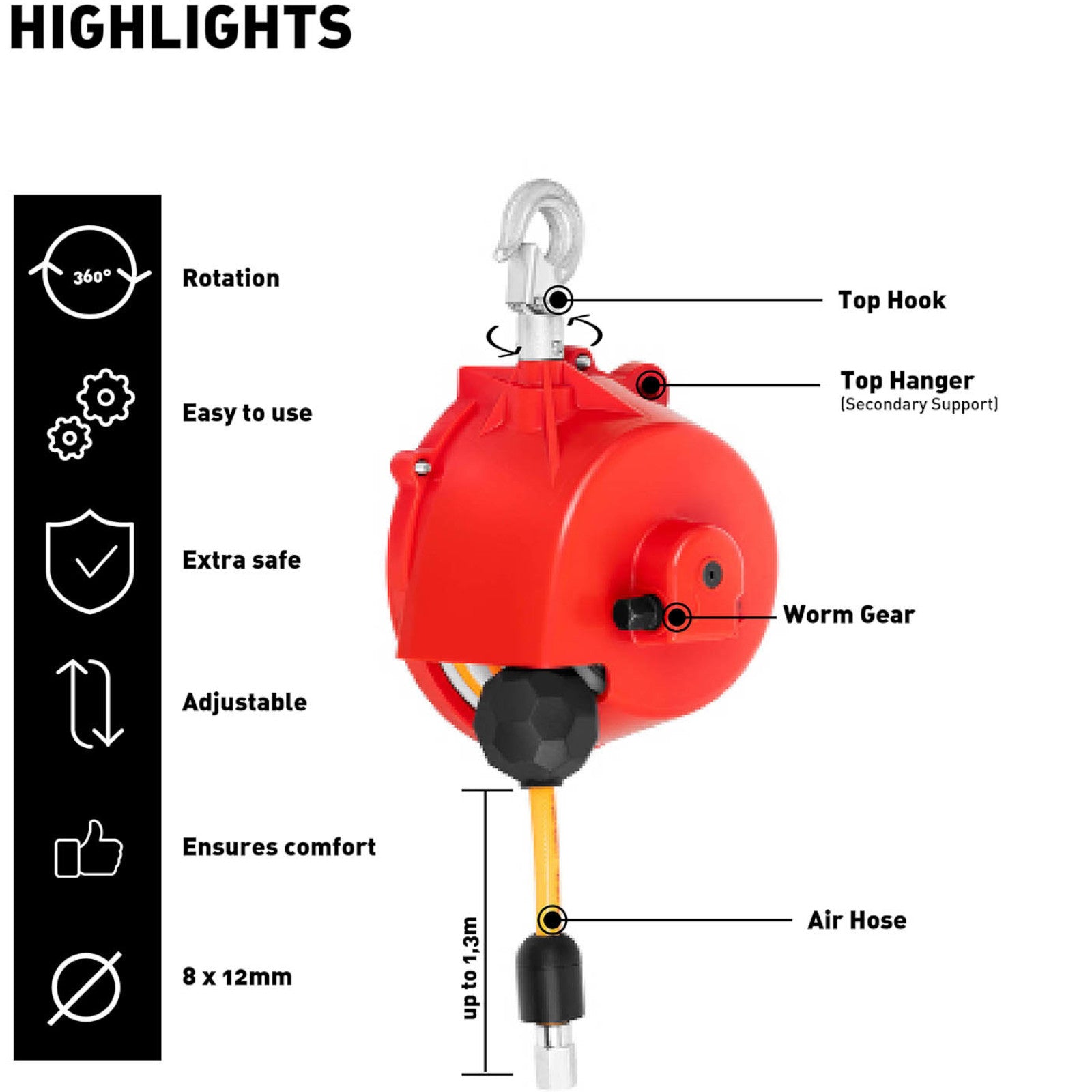

Product features: - - High load capacity allows to maintain tools weighing 5 - 6.5 kg,
- - The length of the hose 1.3 m ensures maximum freedom of movement,
- - Retracts from work heavy pneumatic tools to prevent fatigue,
- - housing made of steel and resistant to tearing hose of polyester,
- - Keeps the pneumatic tools in position for work.
Technical parameters: - - Model - SBS-AHB-65
- - Catalog number - 10030748
- - The state of the article - New
- - Working length [m] - 1,3
- - Snake thickness [mm] - 8 x 12
- - Material - Plastic, polyester, steel
- - Permissible load [kg] - 6,5
- - Maximum load [kg] - 6,5
- - Connection - Air intake: 3/8", air outlet: 1/4"
- - Weight load [kg] - 5-6,5
- - Maximum pressure [bar] - 6 MPa
- - Working pressure [MPa] - 1
- - Dimensions (DxSxW) [cm] - 25 x 18 x 17
- - Weight [kg] - 2,25
- - Dimensions of dispatch (DxSxW) [cm] - 32.5 x 24 x 19.5
- - Weight of dispatch [kg] - 2,65

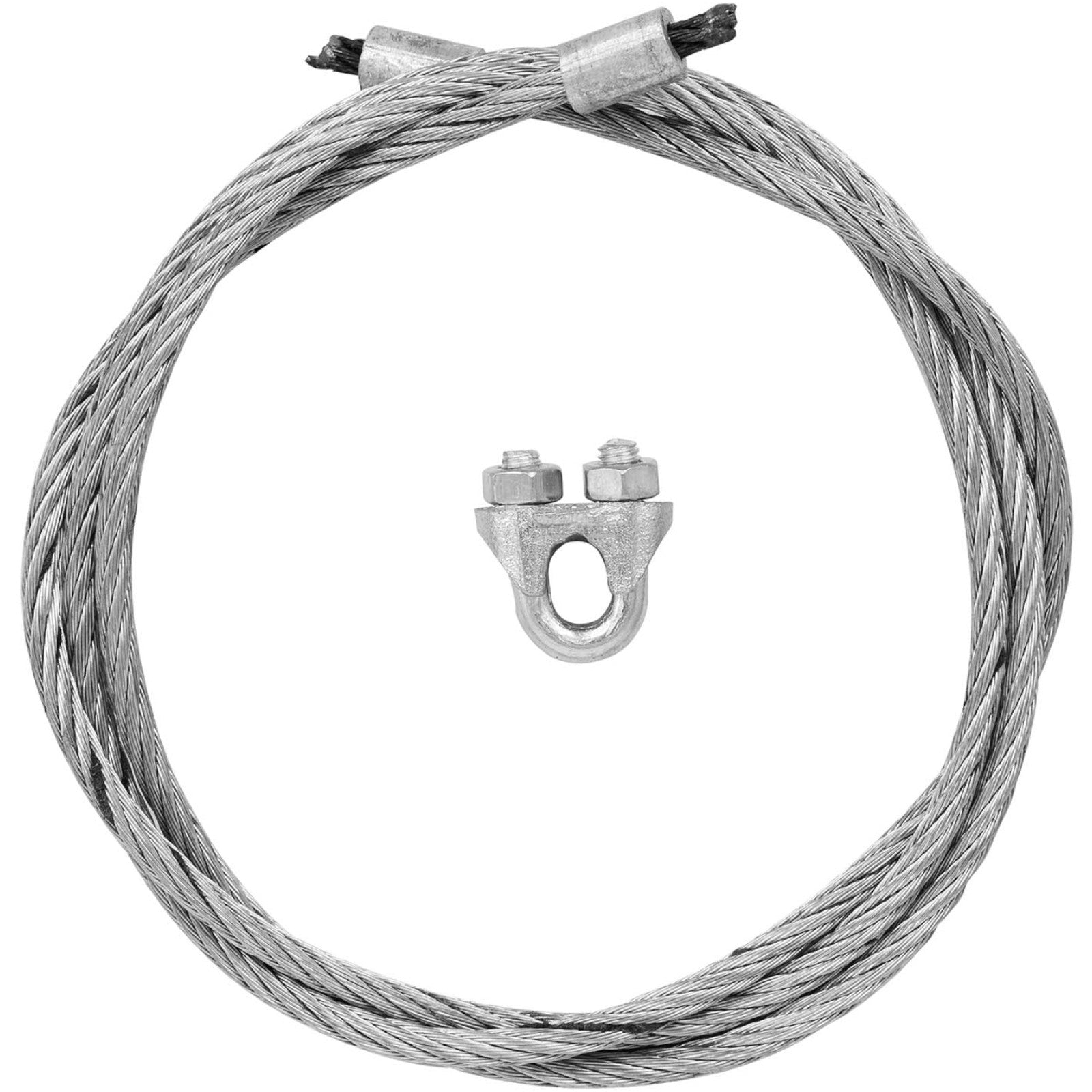

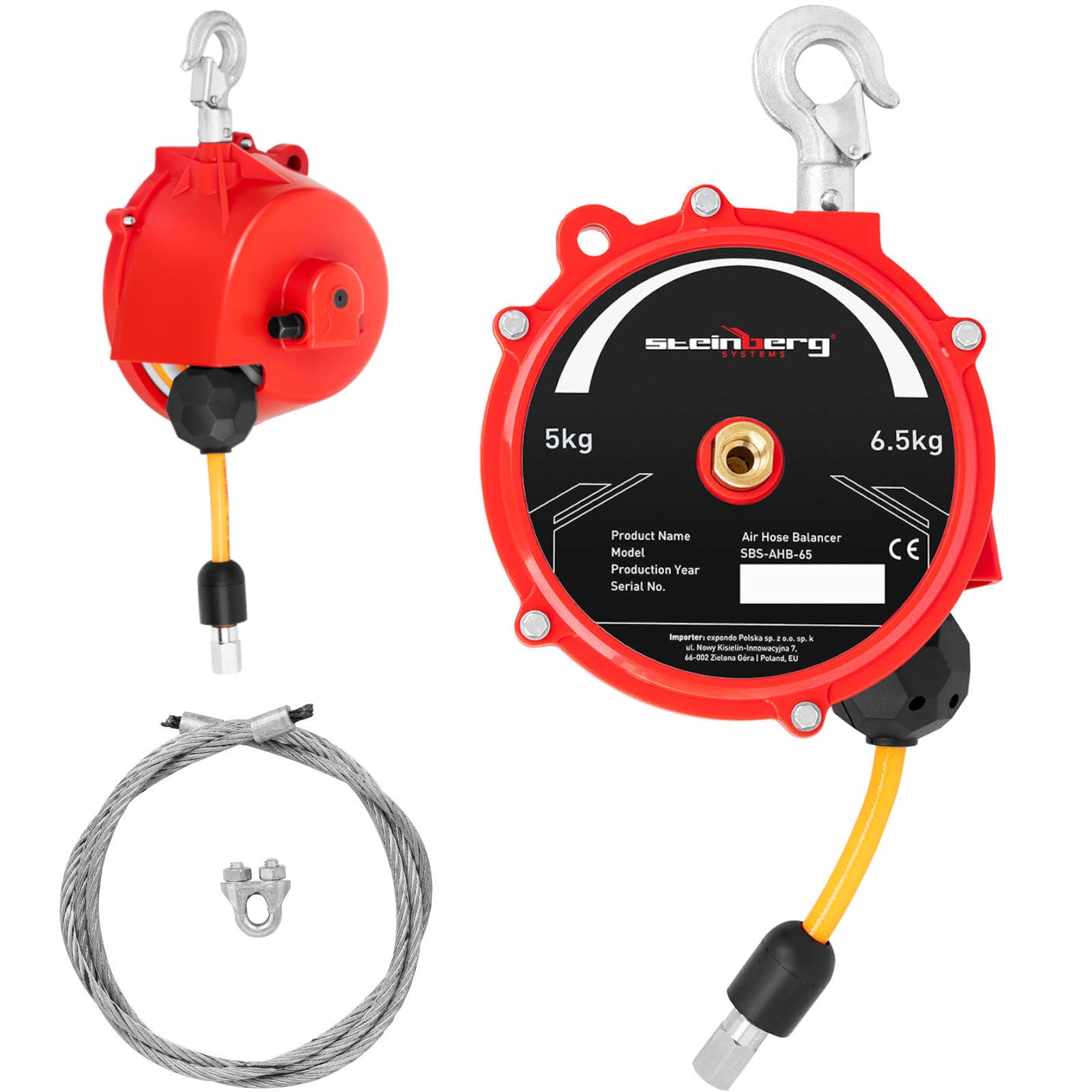

Included:
