Manufacturer's number:

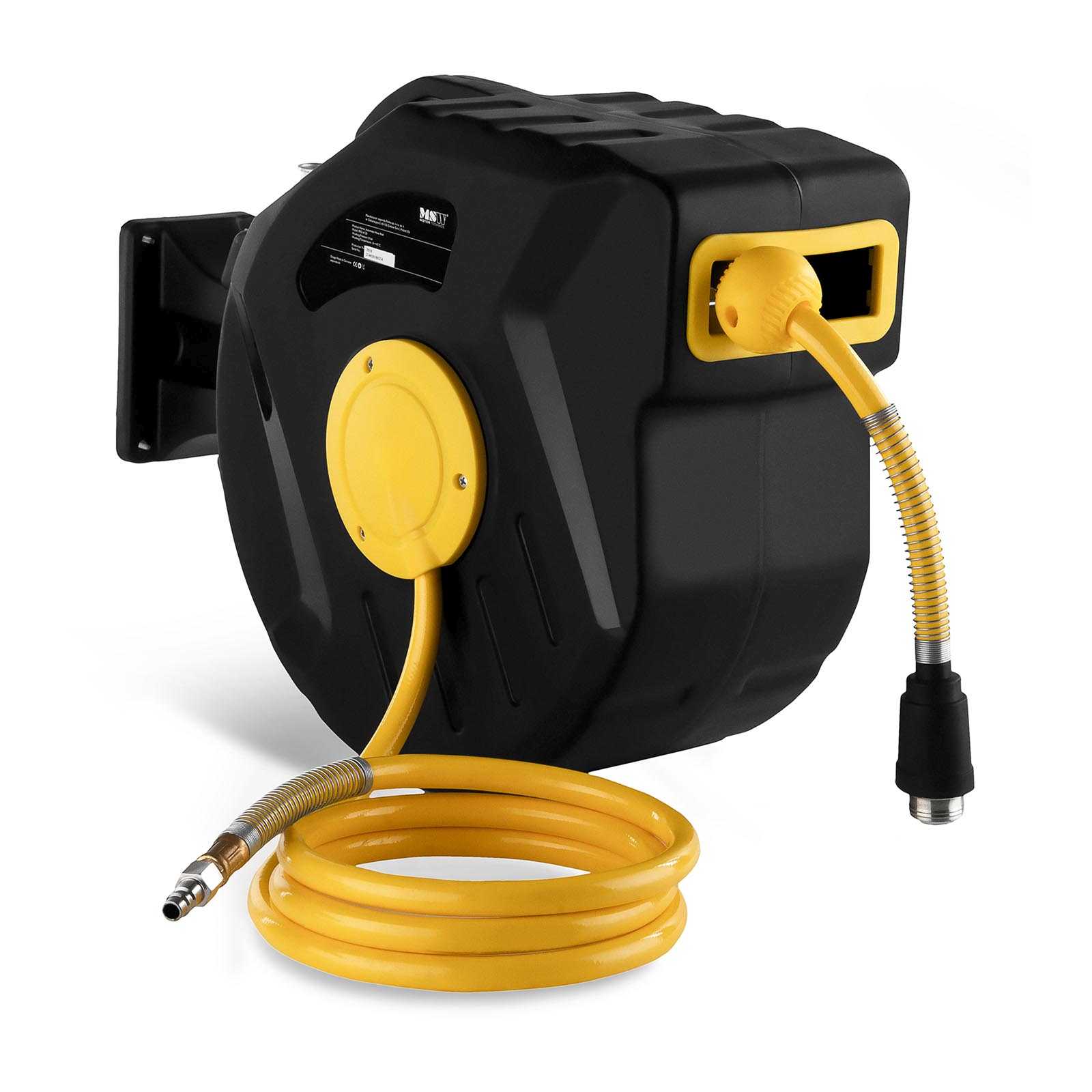

MSW 10060675 Automatic retractor with compressed air cable The PRO-A 20 model will be used primarily in manufacturing plants and workshops, but it will also work in a garage or a smaller master shop. The 20-metre pressure hose facilitates free movement during operation with compressed air tools, and
The locking mechanism will block the cable once the desired length is reached. In addition, the automatic folding function (spring-based) quickly hides the cable after the task has been completed, thereby minimising the risk of tripping or accidental damage to the wire and facilitating cleanliness in the workplace.
equipped with a hose-proof lock against the back of the structure and a tight housing to protect the cable against external damage. In addition, the comfortable handle with accessories attached to the kit makes it easy to screw the retractor onto the wall or ceiling.
Product features: - - Comfort - 20-metre hose increases the range and convenience of use of devices requiring connection to the compressor,
- - Ergonomics - automatic folding mechanism with a lock protecting the wire against retreating to the interior of the structure,
- - Simple - easy and comfortable installation on the wall or ceiling,
- - Security - a sealed casing prevents external damage.
Technical parameters: - - Model - PRO-A 20
- - Catalog number - 10060675
- - The state of the article - New
- - Material - PP
- - The length of the snake - 20 m
- - The length of the hose connection - 2 m
- - Snake material - PVC
- - Air duct diameter (internal/outdoor) - 9,5 / 15,5 mm
- - The connection - 1/4 NPT/BSPT
- - The size of the connection - 1/4#8221
- - Working pressure - 18 bar
- - Working temperature - -5 to 45deg C
- - Dimensions (DxSxW) - 46.5 x 18 x 34.5 cm
- - Weight - 7,1 kg
- - Dimensions of dispatch (DxSxW) - 46 x 22 x 37 cm
- - Weight of shipping - 7,8 kg
Included: - - The retractor with the pneumatic hose,
- - Screws for fixing (L 70 mm Ø12/8 mm)
- - The PL manual.
