Manufacturer's code:

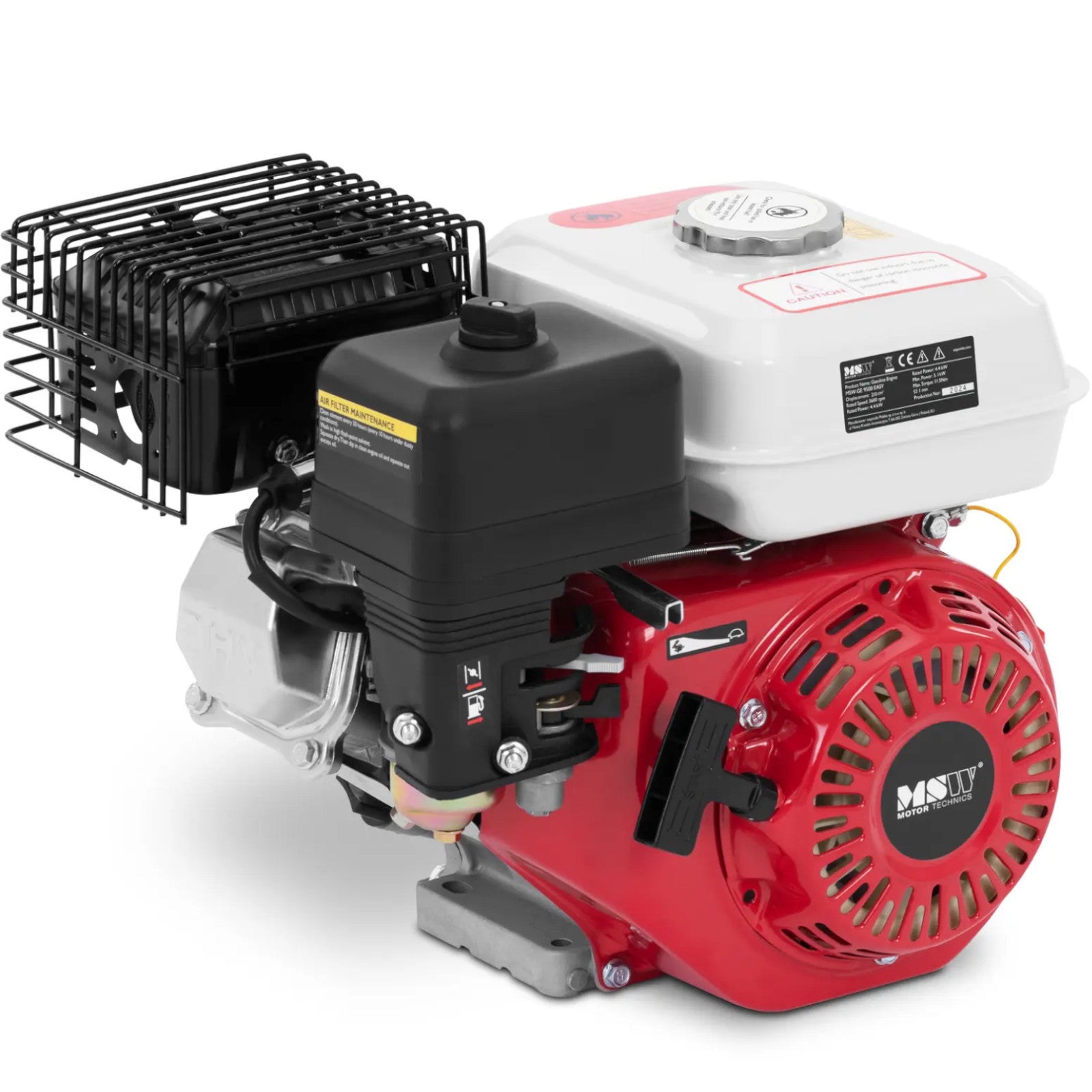

10062652MSW 4-stroke engine with a power of 9 HP with a universal shaft will work both as a stationary engine and as a replacement engine in devices such as water pumps, compactors, lawn mowers, sweepers and snow blowers. It will also serve as a go-kart engine and many other applications. The device is exceptionally easy to use and at the same time has surprisingly low fuel consumption. The displacement is
210 cm³, the power is 9 HP and the speed is 3600 rpmwith a maximum torque of
11.5 Nmthe engine meets the highest requirements. The shaft with a diameter of

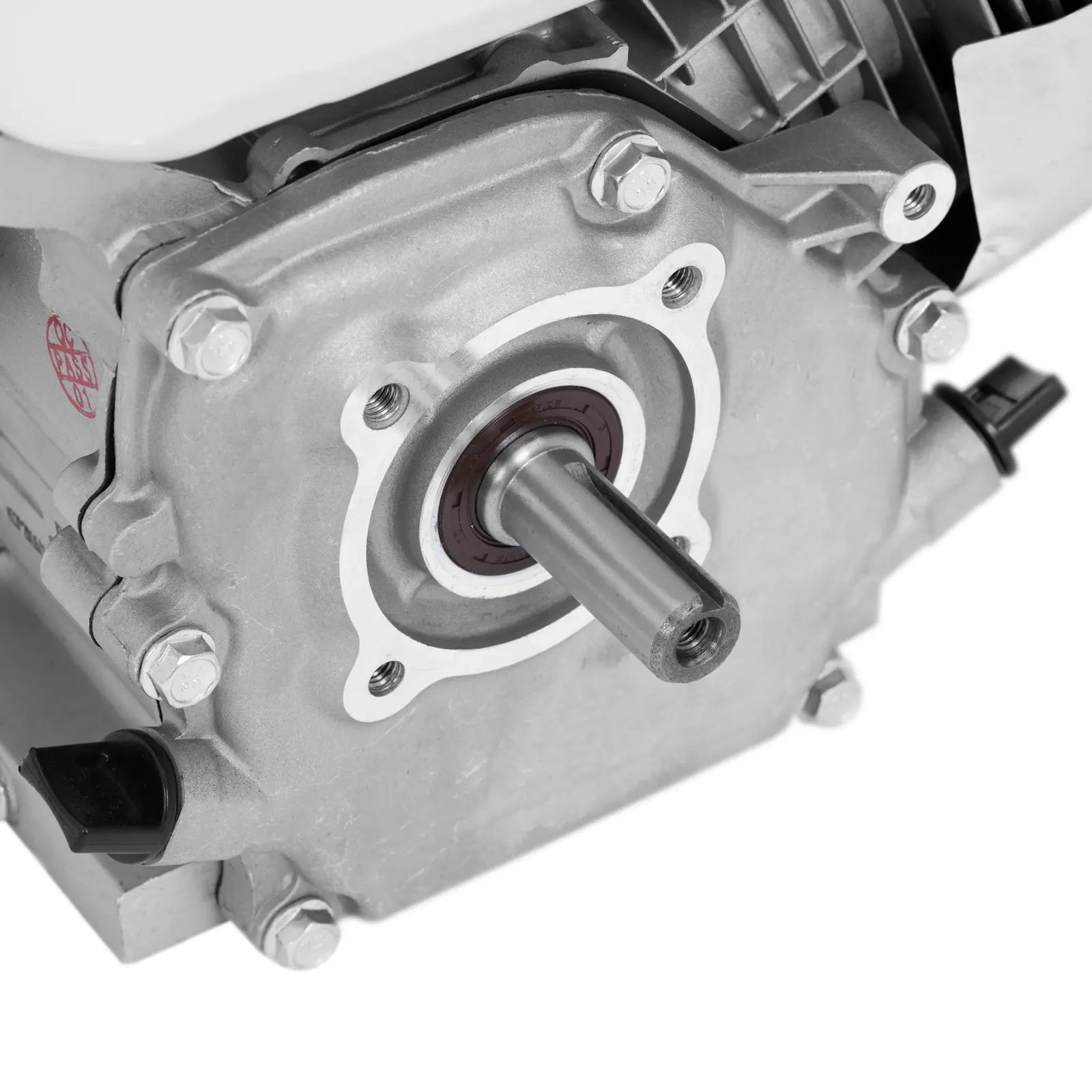

20 mm and a length of 50 mm reliably transmits the generated energy. In addition to its great performance, it is also characterized by low consumption of only

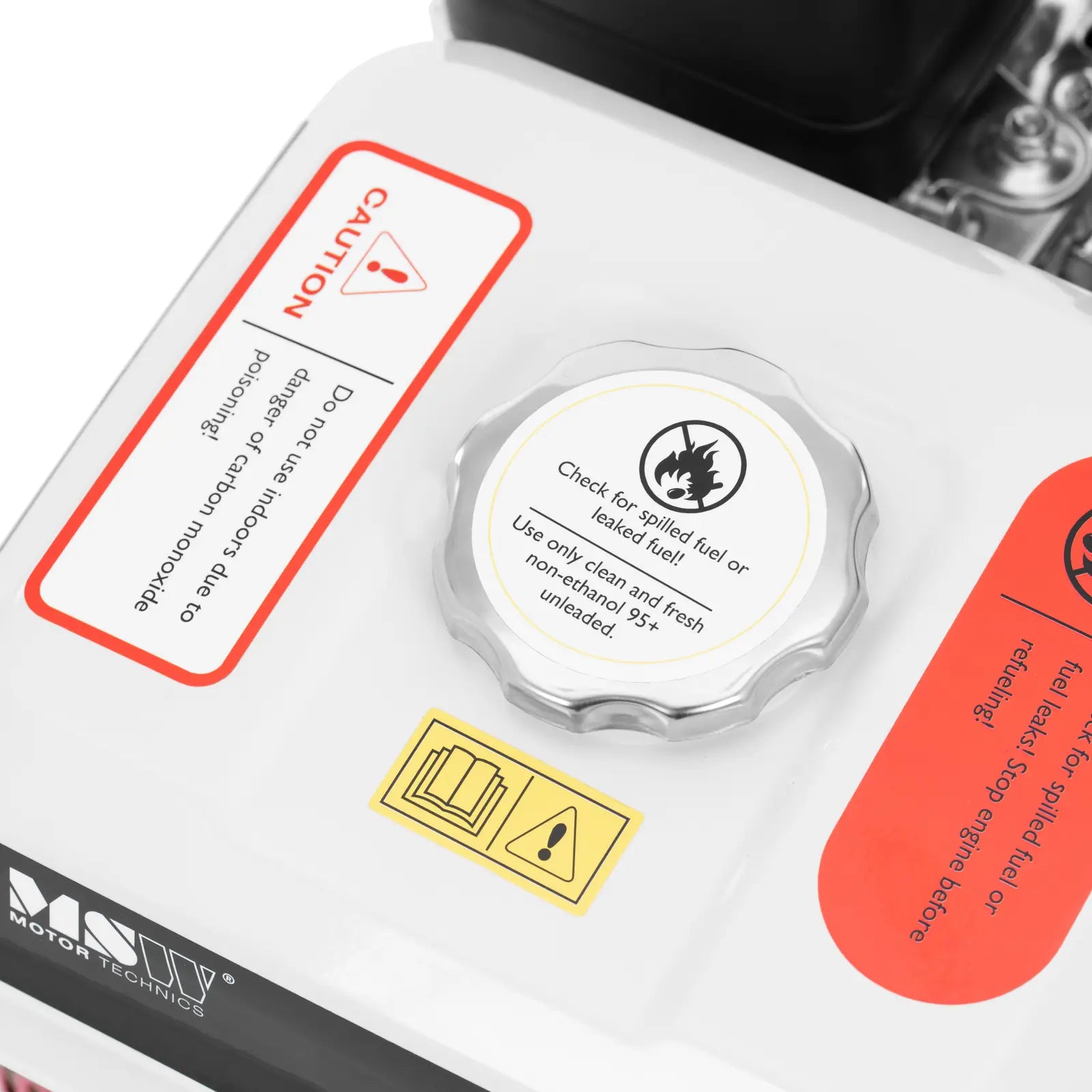

430 g/kWh. The device is activated by a rope. The tank with a capacity of
3.6 liters allows for long-term operation. The engine is carefully made of durable materials, which guarantees reliability even after intensive use. The
four-stroke engine is equipped with many protective functions, such as

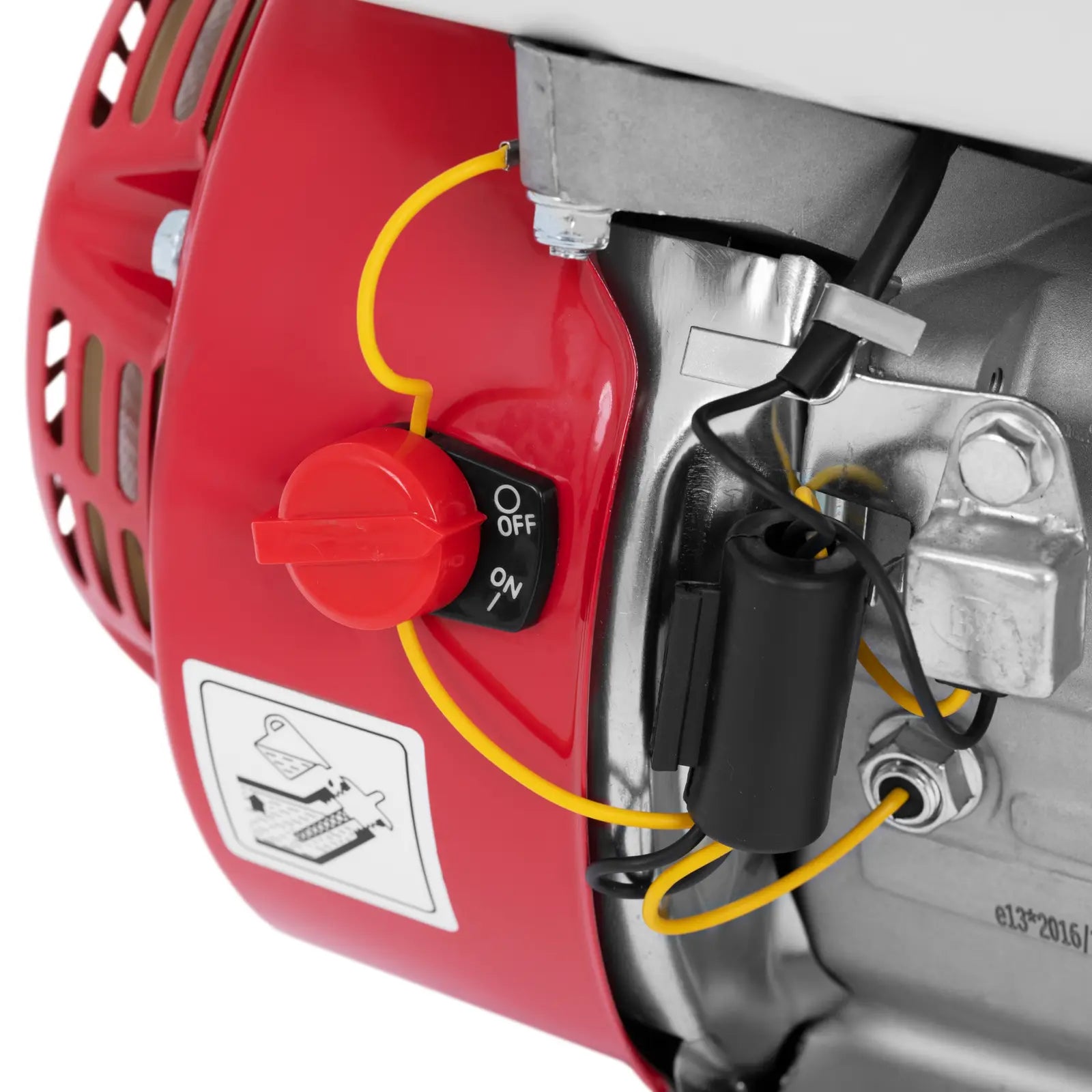

AVR and shutdown in case of lack of oil or overheating. Effective air cooling also protects against overheating.
Product features: - - Manual start of the 4-stroke engine with a cable and long operating time thanks to the capacity of 3.6 liters,
- - Thanks to the power of 9 HP, the gasoline engine can be used as a stationary engine and a replacement engine in devices such as water pumps, vibrating plates, lawn mowers and sweepers,
- - It has air cooling to protect against overheating, automatic voltage control (AVR) and protection against shutdown in case of lack of oil and overload,
- - Thanks to the high quality of workmanship, easy starting and quiet operation of the stationary engine with minimal vibration,

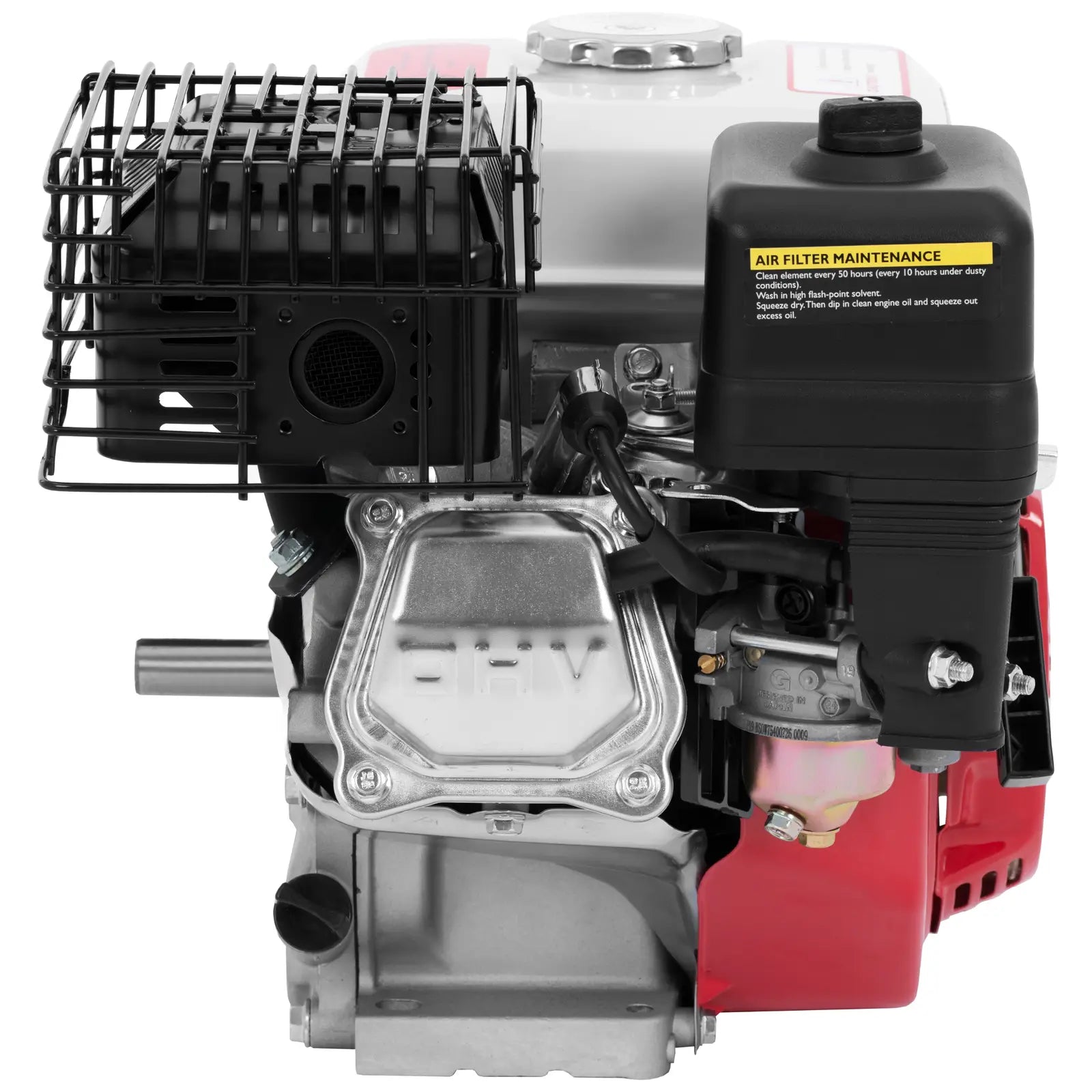

- - OHV valve control gives the 4-stroke engine an optimized design with excellent performance,
- - Drive shaft with a diameter of 20 mm and a length of 50 mm can be easily adapted to many devices.
Technical parameters: - - Catalog number - 10062652
- - Article condition - New
- - Model - MSW-GE 9500 EASY
- - Power supply type - Petrol
- - Material - Aluminum, Copper
- - Color - Red, White
- - Ignition system - TCI
- - Cylinder diameter x stroke [mm] - 70*54
- - Rated speed [rpm] - 3600
- - Fuel consumption [g/kWh] - 430
- - Compression ratio - 8.5：1
- - Maximum torque [Nm] - 11.5
- - Engine power [HP] - 9
- - Engine type - Single-cylinder, air-cooled, 4-stroke, OHV
- - Starting - Puller
- - Battery powered - No
- - Maximum power - 5.1 kW
- - Shaft length - 50 mm
- - Displacement volume - 210 cm³
- - Rated power - 4400 W
- - Shaft diameter - 20 mm
- - Fuel tank capacity - 3.6 l

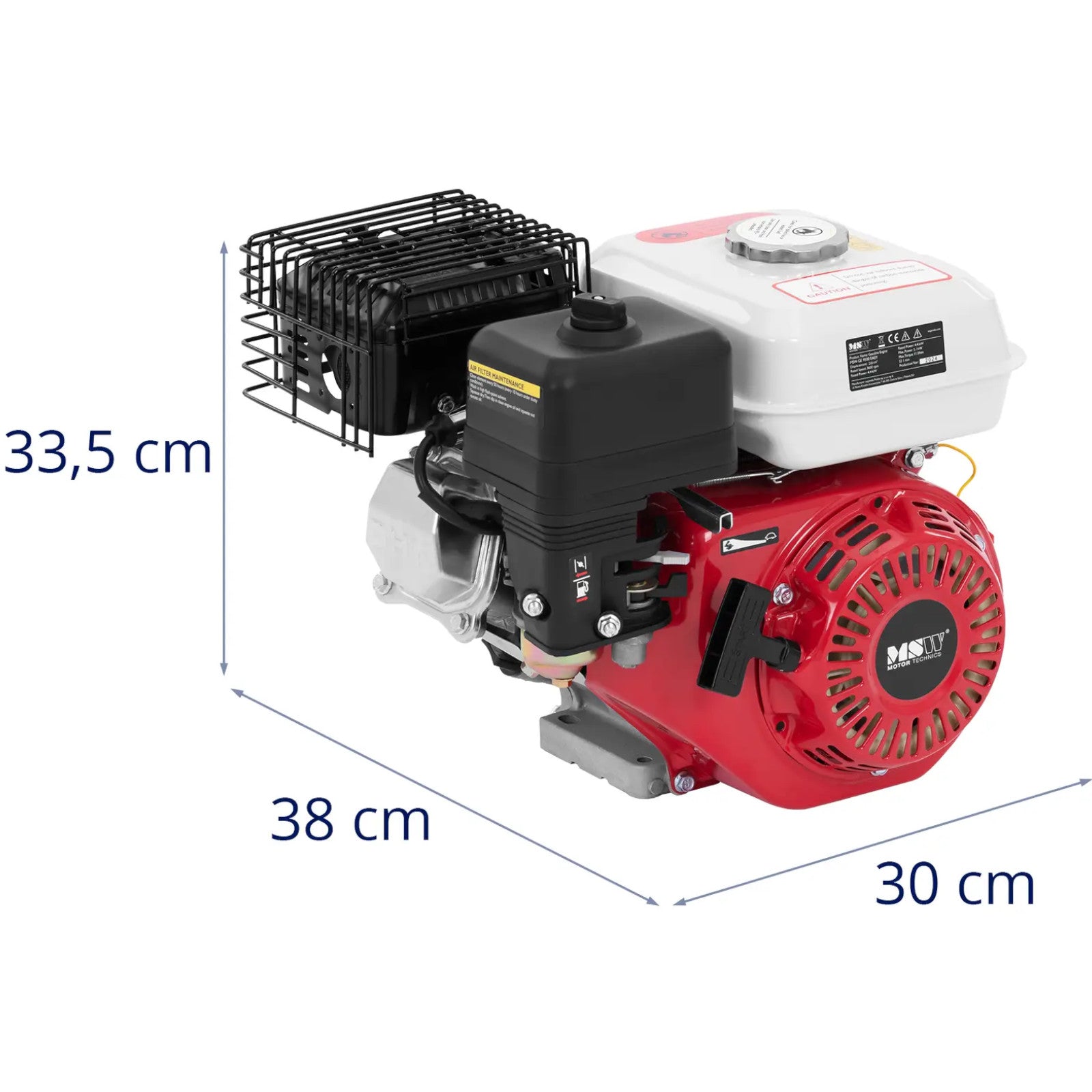

- - Dimensions (LxWxH) - 38 x 30 x 33.5 cm
- - Weight - 13.7 kg
- - Shipping dimensions (LxWxH) - 42.5 x 35.5 x 38.5 cm
- - Shipping weight - 15.9 kg
Included:
