Manufacturer's code:

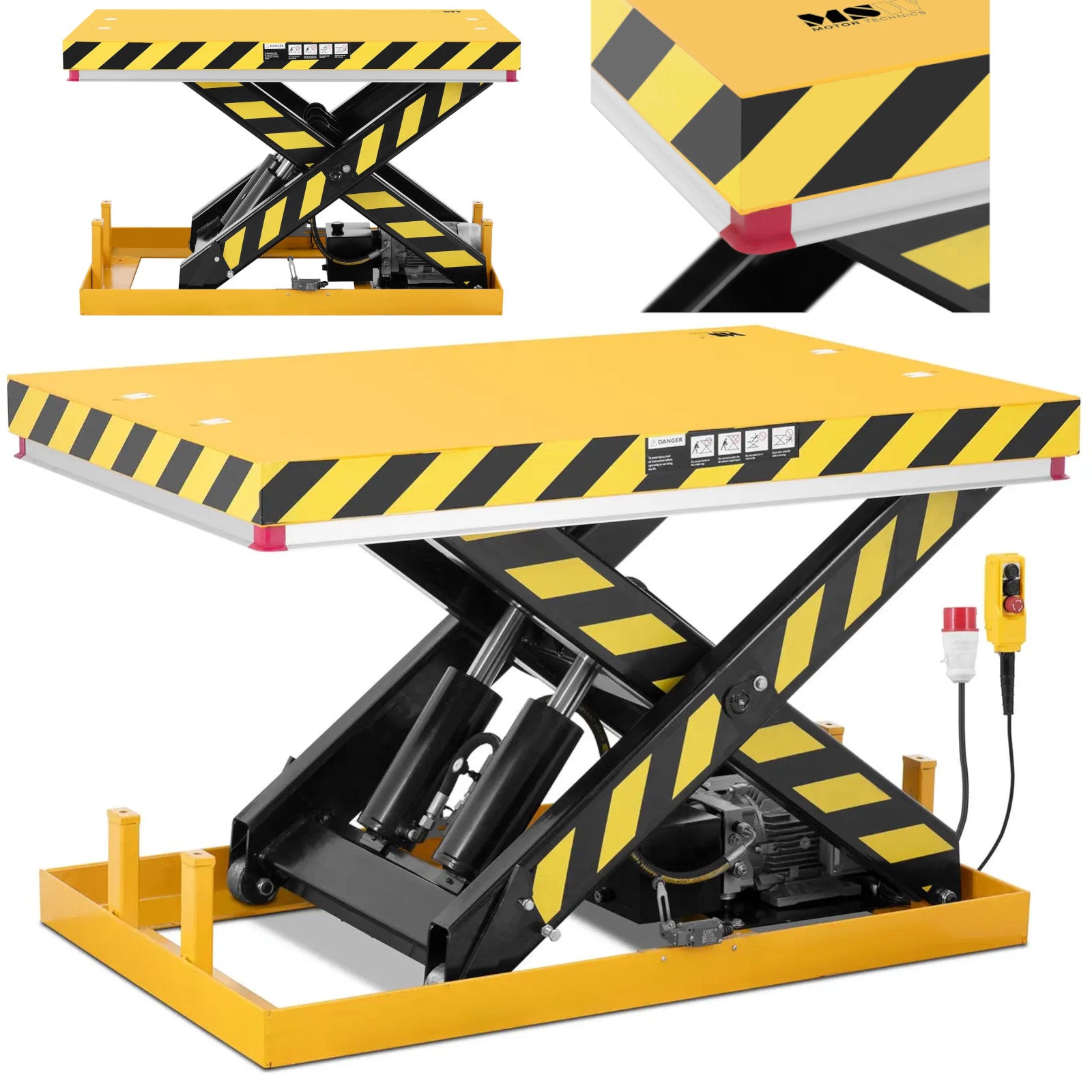

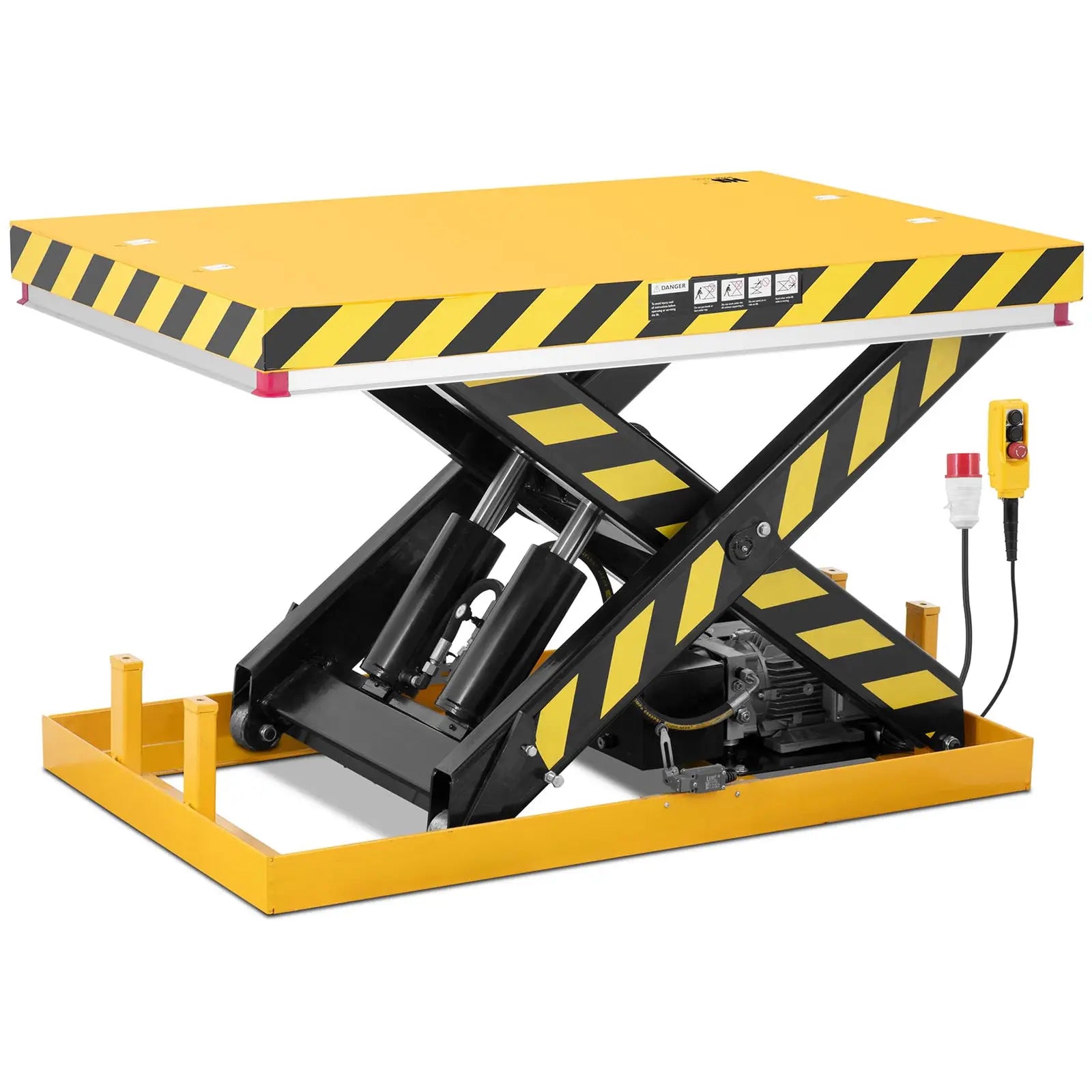

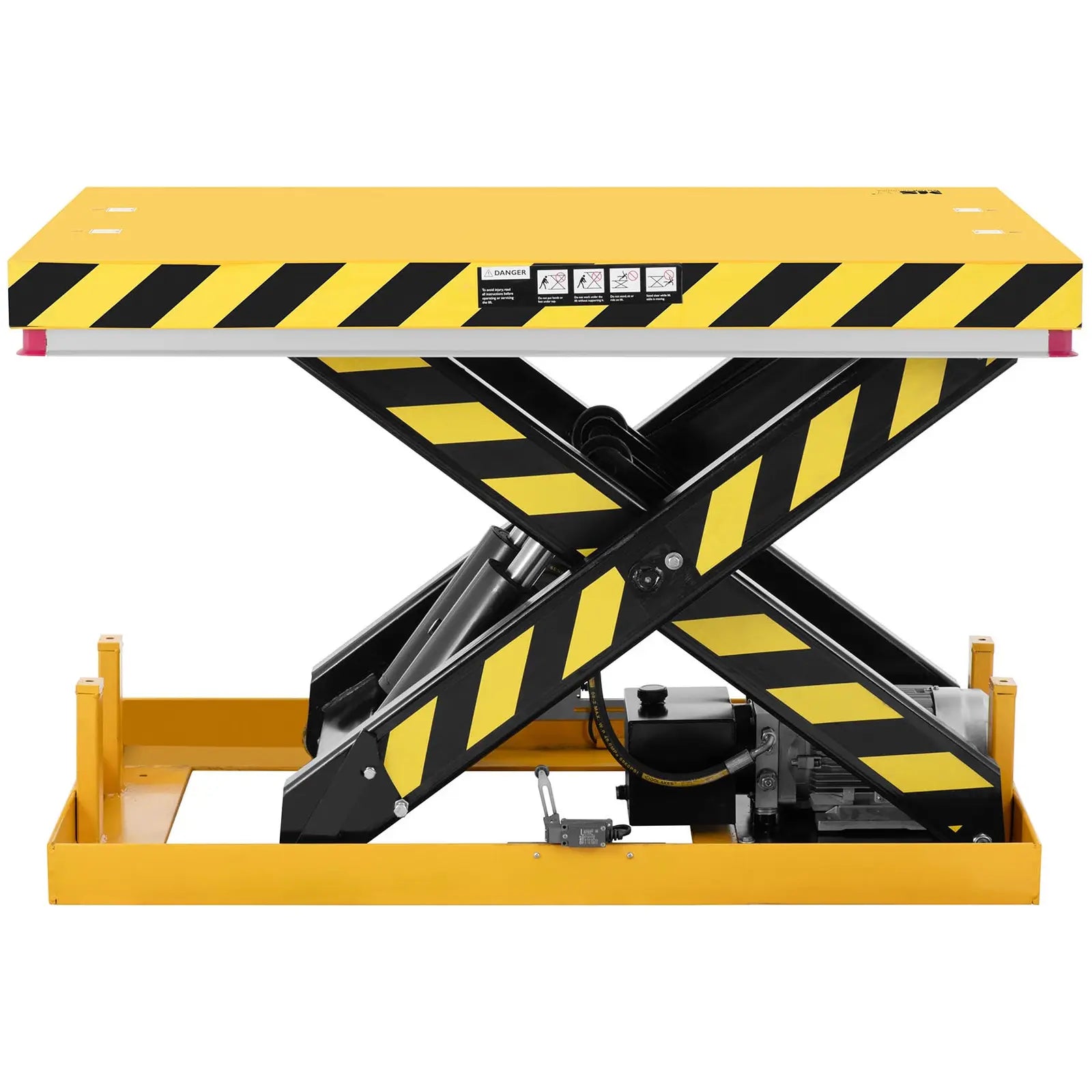

10062363The MSW scissor lift table can be used to place heavy loads weighing up to 2000 kg at the desired height.
The powerful 2200 W motor enables fast lifting at a speed of 40 / 45 mm/s. With a working surface of 85 x 130 cm, the electric table offers enough space even for bulky objects. This makes it an ideal addition to your production line or workshop equipment. The solid steel construction has a secure base. For even greater stability, mount the table on the floor or even let it sink into the floor.
With an external control connected by a 3 m cable, you can steplessly raise or lower the table between 23 - 100 cm. Stable scissors ensure reliable operation and low wear. In addition to its high quality, the table is distinguished by its coated top, which is particularly resistant to external factors. Thanks to the lift, you can work not only ergonomically at the right height, but also safely. The clearly visible and easily accessible emergency stop button ensures immediate shutdown of the device in the event of an immediate threat. The table control panel protects against unauthorized use.
Note: This model requires a 380 V connector.
Product features: - - Work thanks to a lifting height of 23 - 100 cm and a working surface of 85 x 130 cm,
- - Power of 2200 W ensures a lifting speed of 40 / 45 mm/s,
- - External control element connected with a 3 m cable,

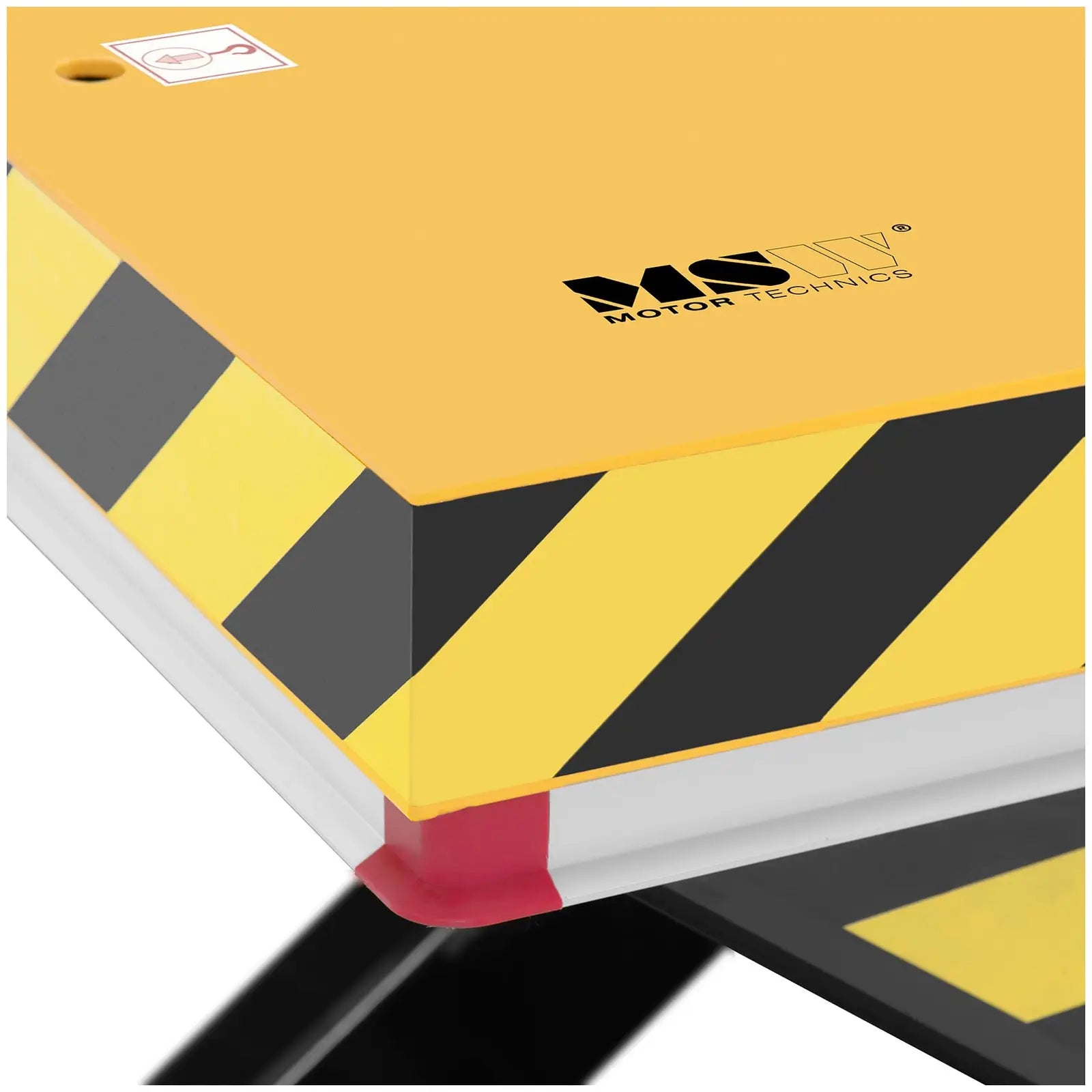

- - Solid construction made of steel, strong scissor lift and powder-coated work surface,
- - Can be placed on the floor or recessed into it.
Technical parameters: - - Catalog number - 10062363
- - Article condition - New
- - Model - MSW-SLT-2000
- - Material - Steel
- - IP protection level - IP54
- - Lifting range [m] - 0.230-1.0
- - Power [W] - 2200
- - Platform size [cm] - 85 x 130
- - Insulation class - F
- - Maximum lifting speed - 40 / 45 mm/s
- - Emergency stop switch - Yes
- - Engine speed [rpm] - 1400
- - Load capacity - 2000 kg
- - Dimensions (LxWxH) - 130 x 85 x 23 cm
- - Weight - 181 kg
- - Shipping dimensions (LxWxH) - 131 x 88 x 37 cm
- - Shipping weight - 258 kg
Included: - - Scissor lift table
- - Control box

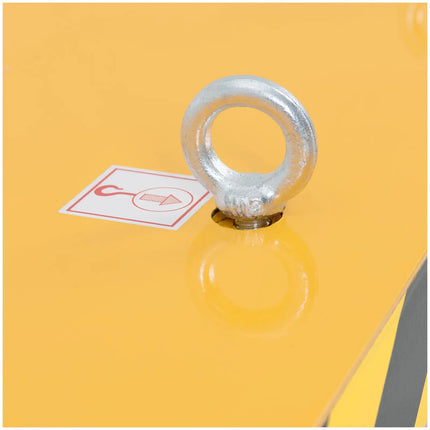

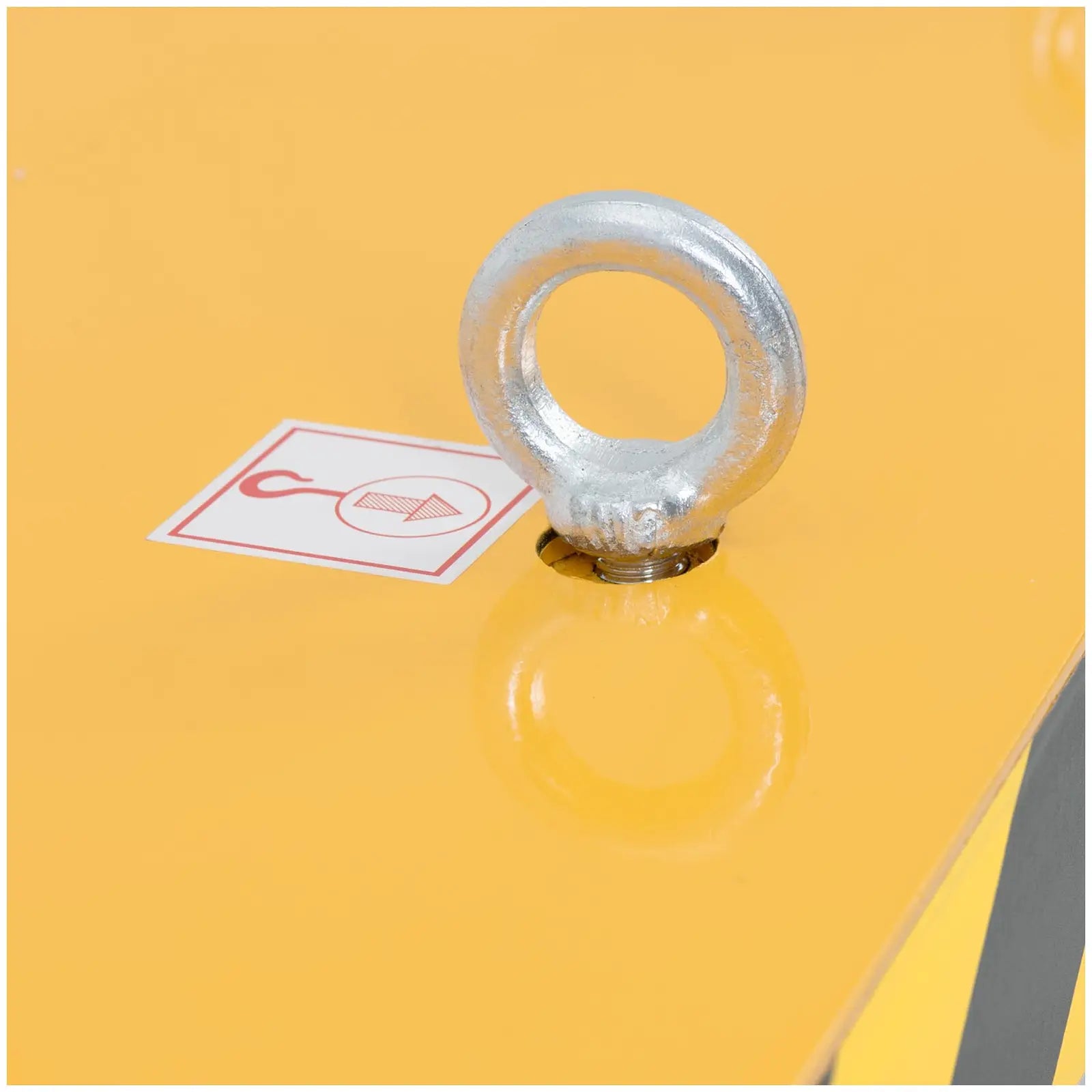

- - 4 eye bolts
- - 4 foundation bolts
